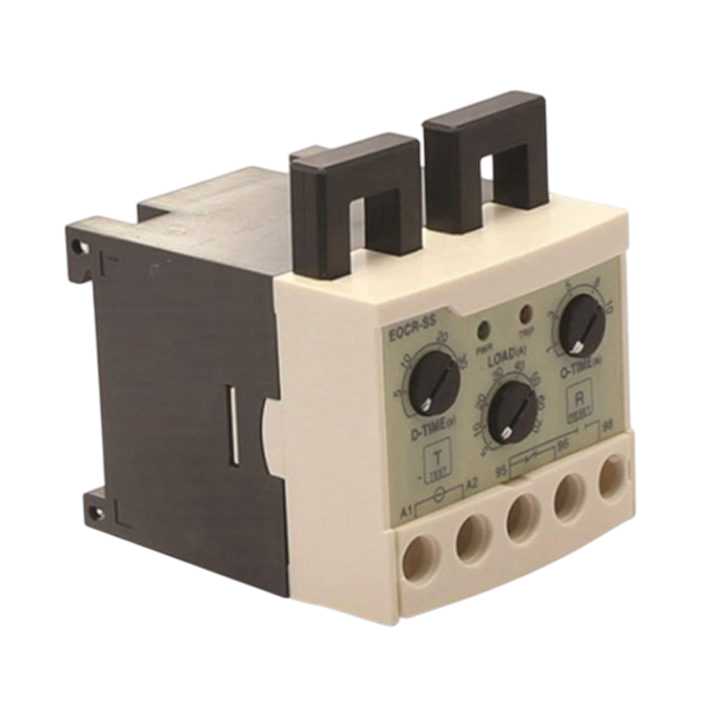

Electronic Over Load Relay (EOCR-SS) in Hall Road Lahore

Usage: Protective
Contact Load: Low Power
Theory: Electronic Overload Relay
Model Number: EOCR-SS
is_customized: Yes
Protect Feature: Sealed
Power Source: AC
Power supply: 180v AC to 440v AC
Current Range: 0.5A-6.5A and 5A-70A (both available)
Time Characteristics:Definite Time
Power Consumption:Under 2W
Operation Time:0.2-30SECONDS O-TIME:0.2-10SECONDS
Accuracy:plus minus 10% Time:plus minus 15% of max. time set value
Size:Miniature
Current Sensing:2 CTs
Mounting:35mm Din Rail or Panel
Reset:Manual or remote electrical by interrupting supply
